CEBA Ingranaggi is equipped with horizontal gear hobbing machines, traditional hobbing machines, gear shaping machines, and Klingelnberg bevel gear machines. The department specializes in the toothing of large-sized gears, providing precise and reliable machining on spur, helical, internal, and external gears.

No. 1 CLC500-H
Horizontal gear hobbing machine for large shafts
– Module up to 30
– Length up to 3,000 mm

No. 1 CLC260-HW
Horizontal gear hobbing machine for shafts
– Module up to 10
– Length up to 2,500 mm

No. 1 PFAUTER P 400H
Horizontal gear hobbing machine for large shafts
– Module up to 16
– Length up to 5,000 mm

No. 1 KLINGELNBERG C 50
Vertical CNC milling machine for bevel gear production
– Module up to 10
– Max diameter up to 600 mm

No. 1 KLINGELNBERG C 60 U
Bevel gear hobbing machine, finishing in HPG-S after hardening (Cyclo-Palloid process)
– Module up to 13
– Max diameter up to 800 mm

No. 1 COMUR DK 200
Gear shaper. Replaces 2 CIMA P5 machines. Ensures higher precision (CNC) and production efficiency
– Max module: 5 mm
– Max gearable diameter: 200 mm
– Max gearable length: 155 mm

No. 1 COMUR DK 1000
Gear shaper, ideal for large gears
– Max module: 14
– Max gearable diameter: 1,000 mm
– Max gearable length: 600 mm

No. 1 CLC2600
6-axis CNC gear shaper
– Max module: 30
– Vertical stroke: 1,000 mm
– Max diameter: 3,000 mm

No. 2 CLC900
6-axis CNC gear shaper
– Max module: 20
– Vertical stroke: 1,000 mm
– Max diameter: 1,000 mm

No. 1 MODUL WF-1250/1500
6-axis CNC gear shaper (Siemens control)
– Max module: 20
– Max diameter: 1,500 mm
– Max gear width: 1,000 mm

No. 1 MODUL ZFWZ 16
6-axis CNC gear shaper (Siemens control)
– Max module: 22
– Max diameter: 2,000 mm
– Max gear width: 1,000 mm

No. 1 MODUL ZFWZ 1250/14 II
For spur, helical, and tangential gears
– Module: 18
– Max diameter: 1,400 mm

No. 1 CIMA CE 350
6-axis CNC gear shaper (Siemens control)
– Max module: 12
– Max diameter: 350 mm

No. 2 CIMA P5
Gear shaper for spur and helical gears

No. 1 PFAUTER P400 SF/2
Horizontal gear hobbing machine for large shafts
– Single tooth
– Max module: 16
– Max workpiece length: 3,000 mm

No. 1 LIEBHERR LC 500
6-axis CNC gear shaper
– Max module: 8

No. 1 FRITZ-HECKERT – ZFWG 250X3000
For worm screws up to module 10
– Splined shafts: max diameter 125 mm, length up to 3,000 mm

No. 1 FRITZ-HECKERT – ZFWVG 250X2000
For worm screws up to module 10
– Splined shafts: max diameter 125 mm, length up to 2,000 mm

No. 1 FRITZ-HECKERT – ZFWVG 250X1000
For worm screws up to module 10
– Splined shafts: max diameter 125 mm, length up to 1,000 mm

No. 1 LEES-BRADNER
For worm screws:
– Module up to 20
– Length up to 1,500 mm
– No. of starts: 24

No. 1 WANDERER
For worm screws:
– Module up to 8
– Length up to 2,000 mm

No. 1 W.M.W.
– Worm screws: module up to 8, length up to 2,000 mm + heavy head
– For splined shafts: max diameter 125 mm + device for crowned gears

No. 1 PFAUTER – P315 H
Thread milling machine for worm screws:
– Max module: 25
– Length up to 2,000 mm
– No. of starts: 12

No. 1 MARUS C.M.C. 15 GS
Internal slotting gear shaper
– Max gearable diameter: 1,700 mm
– Max height: 1,100 mm

No. 1 LORENZ SNJ5
– Module up to 6
– Diameter: 500 mm
– Stroke: 70 mm

No. 3 DENTATRICE CLC
CNC slotting gear shapers
– Max internal gearable diameter: ⌀ 1,250 mm
– Stroke: 300 mm
– Max workpiece height: 830 mm

The toothing grinding department machines gears and components with diameters from 400 to 2,000 mm, ensuring high precision and surface finish even on large-sized workpieces.

No. 1 KLINGELNBERG OERLIKON G60
Universal CNC grinding machine designed for high-precision finishing of helical bevel gears
– Max diameter: 600 mm

No. 1 KLINGELNBERG OERLIKON G80
CNC profile grinding machine for bevel gears with in-machine quality control device
– Max module: 20
– Max diameter: 850 mm
– Max stroke: 100 mm

Our machine fleet allows the machining of large-sized gears up to 2,200 mm in diameter.

No. 2 KAPP NILES KING 12P MASTER
High-precision grinding machine designed for finishing external and internal gears, as well as special profiles. The machine allows mounting of different attachments, including:
– Arm dedicated to internal gear grinding
– Arm equipped with small-diameter grinding wheel

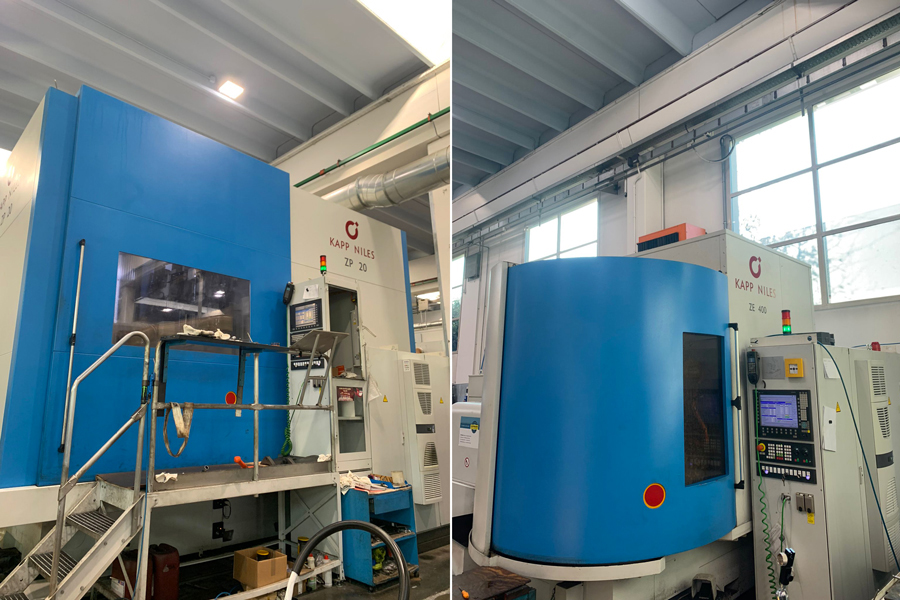

No. 1 KAPP NILES ZE 400

No. 3 KAPP NILES ZE 800

No. 1 KAPP NILES ZE 1200

No. 1 KAPP NILES Z P20

No. 1 OPAL MAAG 800

No. 1 RTS
CNC vertical grinding machine for internal and external surfaces
– Max diameter: 1,500 mm
– Max height: 1,000 mm

No. 1 CLC
CNC vertical grinding machine for internal and external surfaces
– Max diameter: 1,300 mm
– Max height: 500 mm

No. 1 CETOS BUB 40 B CNC HOSTIVAR
Universal CNC cylindrical grinding machine
– Max diameter: 360 mm
– Max length: 1,500 mm

No. 1 ROBBI
CNC horizontal grinding machine
– Max diameter: 400 mm
– Max length: 1,500 mm

No. 1 FORTUNA
Internal grinding machine with plane grinding attachment
– Max diameter: 200 mm

No. 1 WOTAN
Internal grinding machine with plane grinding attachment
– Max diameter: 600 mm

No. 1 SCHAUDT
External grinding machine
– Max diameter: 360 mm
– Usable length: 1,000 mm

No. 1 SCHAUDT
External grinding machine
– Max diameter: 360 mm
– Usable length: 1,600 mm

No. 1 LODI
Circular grinding machine for planes
– Max diameter: 800 mm
– Max height: 500 mm

No. 1 MORARA
CNC internal and external grinding machine
– Max diameter: 400 mm
– Max height: 200 mm

No. 1 KLINGELNBERG
Worm Screw Grinding Machine
High-precision CNC machine for grinding the helical profiles of worm screws, designed to ensure quiet transmissions and maximum reliability.

The milling and drilling department at CEBA handles workpieces from

No. 2 AWEA OVERMACH
4-axis machining center, high-tech solution for complex operations

No. 1 FRESA A 2 ASSI

No. 1 ALESATRICE

No. 1 FRESA MCL10

No. 1 KESEL L93 – 2100
CNC MILLING MACHINE – 3 AXES
– Racks from module 1 up to max module 25
– Unlimited working length
– Stroke: 250 mm

No. 1 KESEL RMS 2100
CNC MILLING MACHINE – 3 AXES
– Racks from module 1 up to max module 25
– Unlimited working length
– Stroke: 250 mm

No.° 1 DMG DMU 90P
5-axis machining center
– Max diameter: 1,000 mm

Precision gear shaping of keyways, splines, and internal and external teeth on complex profiles and blind holes

No. 1 DK77 EDM MACHINE
– Stroke: 500 mm
– Workpiece diameter: 700 mm
– Production of internal teeth
– Post-heat treatment machining, deformation-free

No. 1 80D EDM MACHINE
– Stroke: 500 mm
– Workpiece diameter: 700 mm
– Production of internal teeth
– Post-heat treatment machining, deformation-free

No. 2 FROMAG RAPIDA D63
– Stroke: 500 mm
– Keyways up to 150 mm length
– Inclined keyways 1:100
– Indexing device for multiple keyways

No. 1 FROMAG RAPIDA D100
– Stroke: 600 mm
– Keyways up to 150 mm length
– Inclined keyways 1:100
– Indexing device for multiple keyways

No. 1 SACHMAN
– Keyways from 3 to 30 mm, including blind keyways
– Indexing device for multiple keyways

No. 2 M3
Shaper tool grinder for Gleason cutters and special tools

N° 1 SCHNEEBERGER CORVUS NGB
Macchina per lavorazioni di precisione su utensili e componenti di grandi dimensioni
– Riaffilatura di utensili da taglio
– Rettifica di profili complessi su alberi scanalati, viti senza fine e creatori

We have vertical lathes and horizontal lathes to ensure maximum flexibility on any type of machining and workpiece size

No. 1 EMCO TURN 900
Horizontal CNC lathe with inclined bed for heavy-duty, high-precision machining

No. 1 PUMA 3100 XLY
4-axis horizontal CNC lathe designed for heavy and complex turning of large workpieces

No. 1 PUMA 4100 LM
High-performance horizontal CNC lathe for heavy material removal and complex milling on large-diameter and long components

No. 6 Vertical CNC lathes
– Max diameter: 2,000 mm
